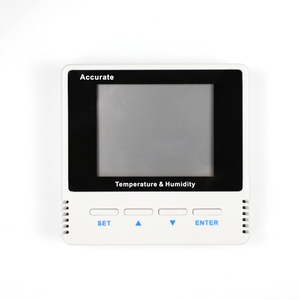

Temperature Humidity Transmitter with RJ45 Connector

1．Equipped with calibration function, it can perform error correction settings on temperature and humidity with high accuracy and good consistency.

2．Low power consumption, power consumption as low as 0.1W.

3．The air circulation shell and unique air duct design prevent the temperature rise of the circuit from affecting the sensor accuracy.

4．It has an anti-electromagnetic interference design to avoid interference caused by various external factors and is suitable for different occasions.

5．The sensor module is small in size, light in weight, modular in structure, and easy to install and maintain.

6．Metal surface adsorption installation, easy to install.

7．Dual RJ45 interface wiring method, simple and convenient.

8．Using LCD liquid crystal display, 0.1 display accuracy, beautiful display and easy operation.

9．Standard serial port RS485 communication, maximum serial device 128, transmission distance up to 1200 meters.

10．The address can be modified through the DIP switch, which is simple and convenient

SPD-HT485-B is used to measure and display ambient temperature and humidity with rack mounted design. It uses RS485 communication and dual RJ45 port design, which greatly simplifies system wiring and can be integrated with various monitoring systems to achieve remote control.

Q: Does it has RJ45 connection port?

A: Yes, it has.

Q: Does it support rack mounted?

A: Yes, it's magnet mounted, which easy to put on metal rack.

Q: Can it work with the third party monitoring system?

A: It can work with the third party monitoring system as long as the monitoring system support Modbus -RTU protocol. We provide Modbus communication protocol.
